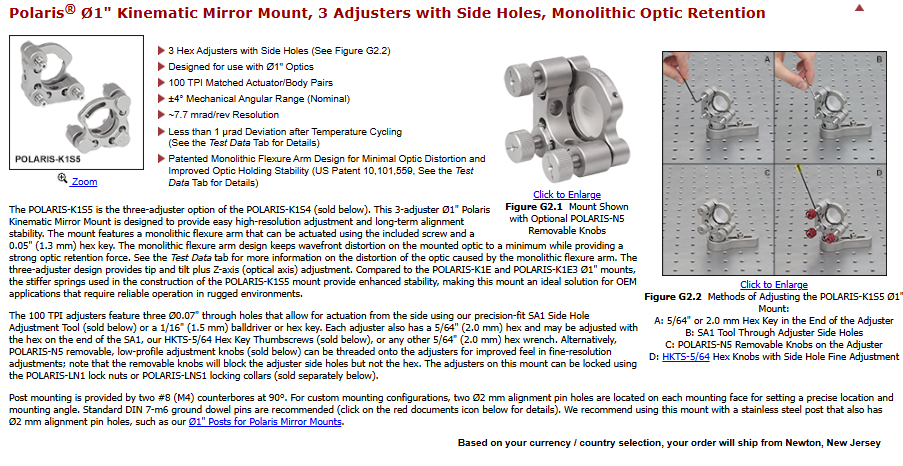

Thorlabs – POLARIS-K1S5 Ø1″ Kinematic Mirror Mount, 3 Adjusters with Side Holes, Monolithic Optic Retention

– 3 Hex Adjusters with Side Holes (See Figure G2.2)
– Designed for use with Ø1″ Optics
– 100 TPI Matched Actuator/Body Pairs
– ±4° Mechanical Angular Range (Nominal)
– ~7.7 mrad/rev Resolution
– Less than 1 µrad Deviation after Temperature Cycling
(See the Test Data Tab for Details)
– Patented Monolithic Flexure Arm Design for Minimal Optic Distortion and Improved Optic Holding Stability (US Patent 10,101,559, See the Test Data Tab for Details)
