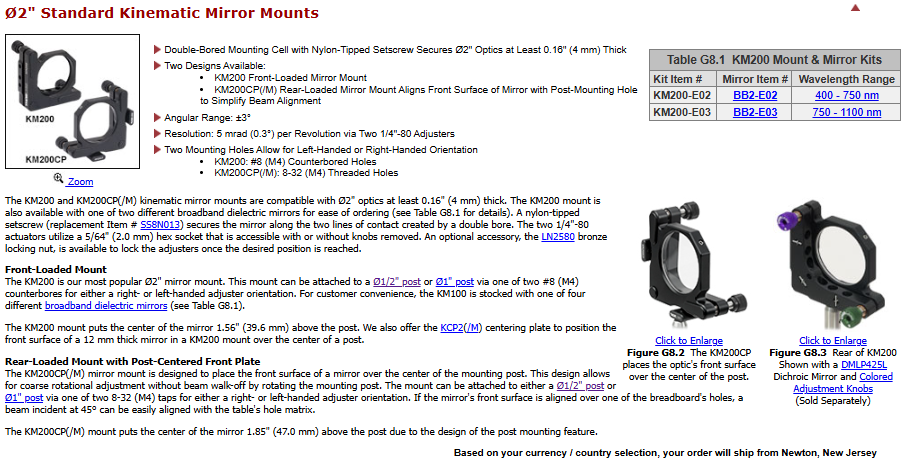

KM200 Ø2″ Standard Kinematic Mirror Mounts
- Double-Bored Mounting Cell with Nylon-Tipped Setscrew Secures Ø2″ Optics at Least 0.16″ (4 mm) Thick
- Two Designs Available:
- KM200 Front-Loaded Mirror Mount
- KM200CP(/M) Rear-Loaded Mirror Mount Aligns Front Surface of Mirror with Post-Mounting Hole to Simplify Beam Alignment
- Angular Range: ±3°
- Resolution: 5 mrad (0.3°) per Revolution via Two 1/4″-80 Adjusters
- Two Mounting Holes Allow for Left-Handed or Right-Handed Orientation
- KM200: #8 (M4) Counterbored Holes
- KM200CP(/M): 8-32 (M4) Threaded Holes
KM200 – Kinematic Mirror Mount for Ø2″ Optics
KM200-E02 – Kinematic Mirror Mount for Ø2″ Optics with Visible Laser Quality Mirror
KM200-E03 – Kinematic Mirror Mount for Ø2″ Optics with Near IR Laser Quality Mirror
