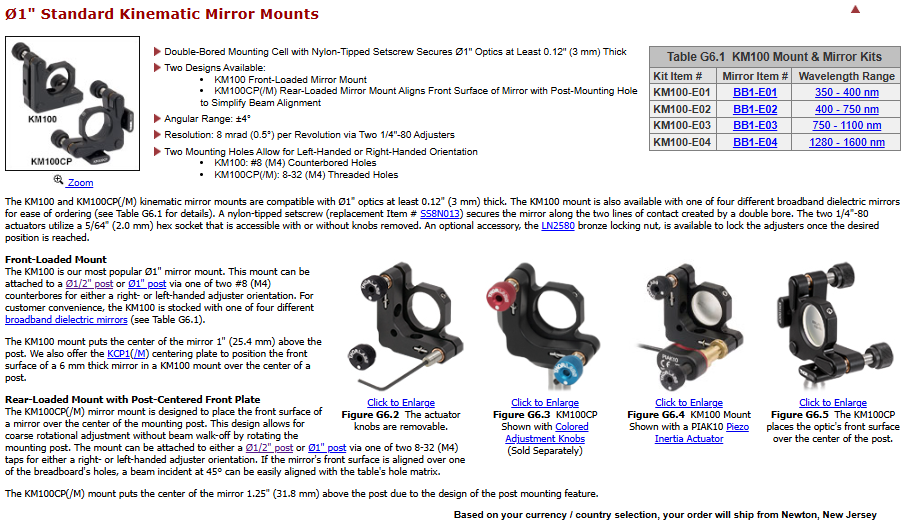

Thorlabs – KM100 Kinematic Mirror Mount

Thorlabs – KM100 Kinematic Mirror Mount

Thorlabs - KM100 Kinematic Mirror Mount

  • Double-Bored Mounting Cell with Nylon-Tipped Setscrew Secures Ø1″ Optics at Least 0.12″ (3 mm) Thick
  • Two Designs Available:
    • KM100 Front-Loaded Mirror Mount
    • KM100CP(/M) Rear-Loaded Mirror Mount Aligns Front Surface of Mirror with Post-Mounting Hole to Simplify Beam Alignment
  • Angular Range: ±4°
  • Resolution: 8 mrad (0.5°) per Revolution via Two 1/4″-80 Adjusters
  • Two Mounting Holes Allow for Left-Handed or Right-Handed Orientation
    • KM100: #8 (M4) Counterbored Holes
    • KM100CP(/M): 8-32 (M4) Threaded Holes



문의하기

KM100 – Kinematic Mirror Mount for Ø1″ Optics

KM100-E01 – Kinematic Mirror Mount for Ø1″ Optics with UV Laser Quality Mirror

KM100-E02 – Kinematic Mirror Mount for Ø1″ Optics with Visible Laser Quality Mirror

KM100-E03 – Kinematic Mirror Mount for Ø1″ Optics with Near IR Laser Quality Mirror

KM100-E04 – Kinematic Mirror Mount for Ø1″ Optics with 1.2 to 1.6 µm Laser Quality Mirror
Thorlabs - KM100 Kinematic Mirror Mount
