Part Number: CS65S1T0
Option
-Driver Compatibility
-Housing
-Blade Option
-Electronic Sync.
-Connector
-For use in Vacuum
-Mount
Key Features
-Large 65mm aperture
-Uni-stable operation
-6-bladed design
-Slim form-factor
-RoHS Compliant
-Transfer time on opening: 45.0 milliseconds
-Total opening time: 54.0 milliseconds
-Configured for the VCM-D1 Shutter Driver
→ 상품 상세 정보 : CS65 65mm Optical Shutter
Overview

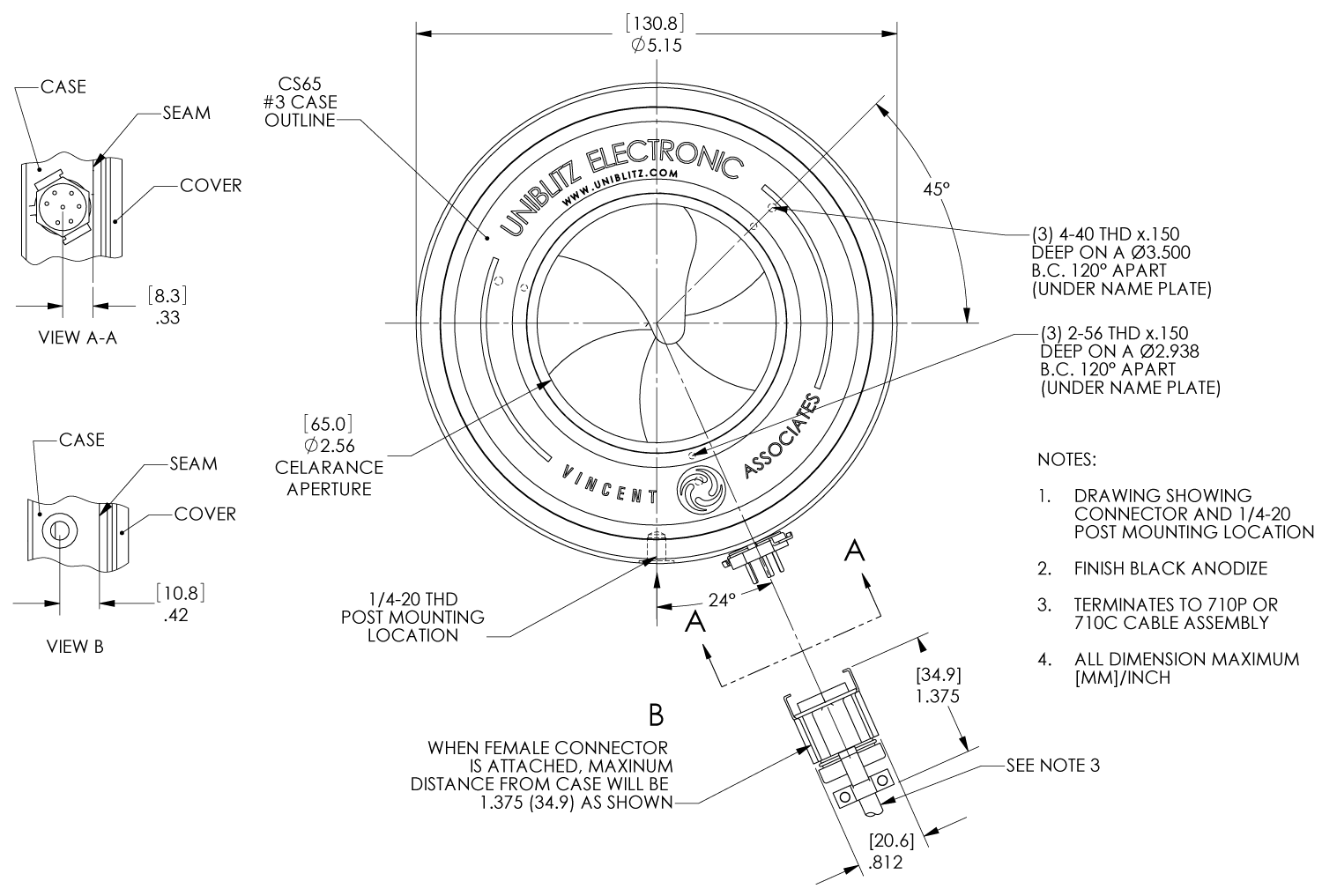

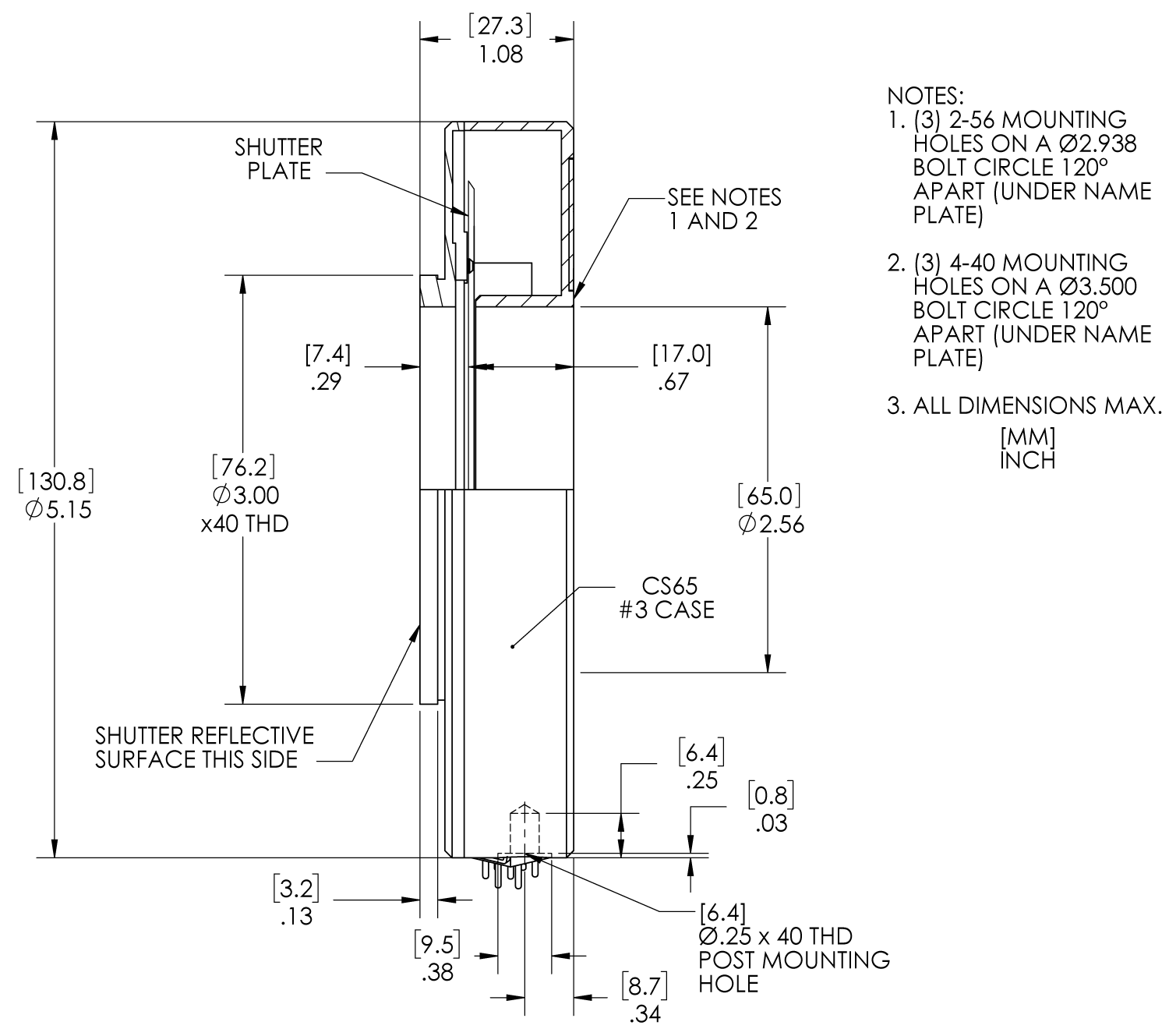

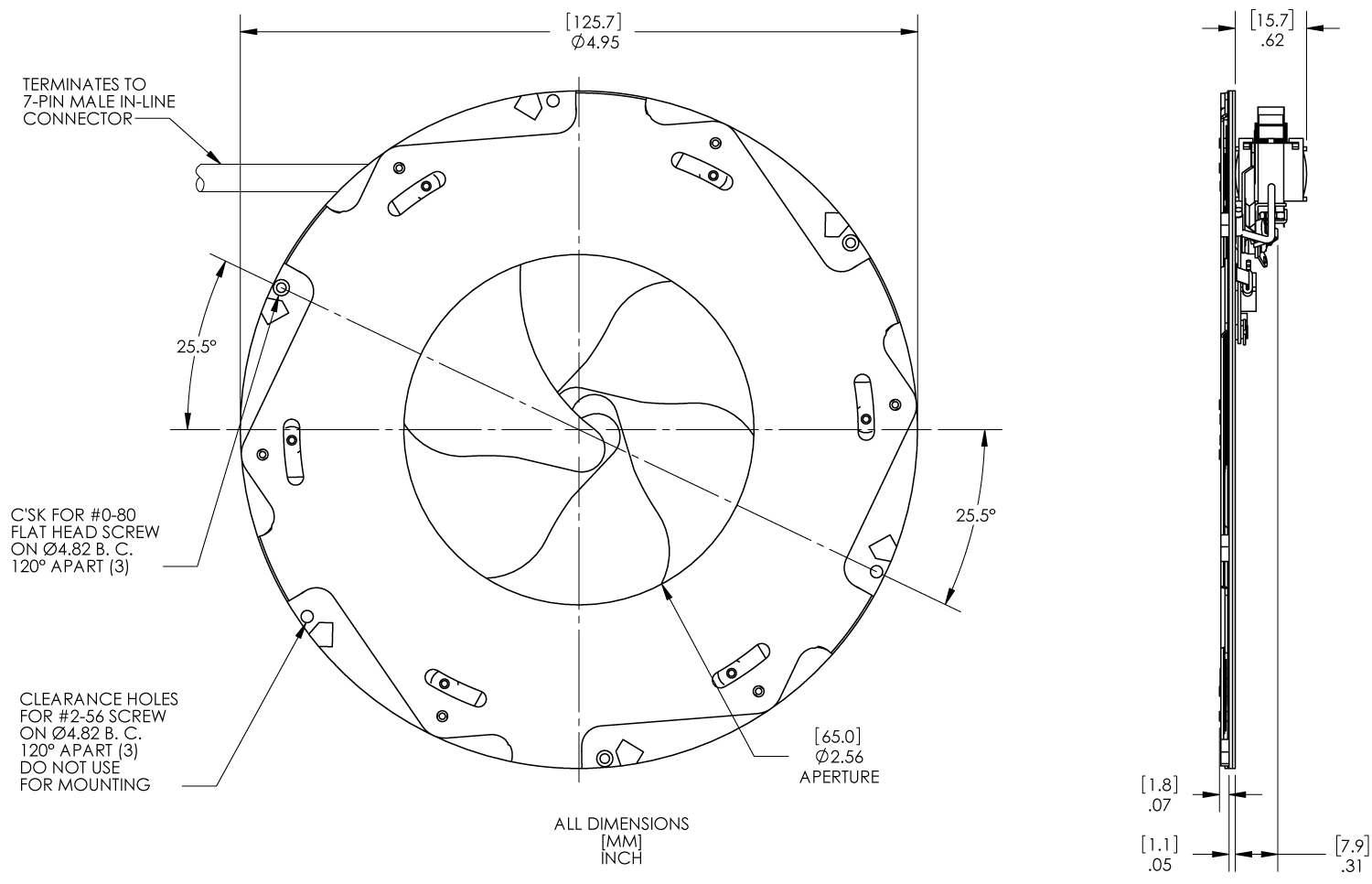

The Uniblitz CS65 has been designed to provide accurate, repeatable exposures for a wide variety of applications such as telescopy and aerospace. The slim form-factor provides a large 65mm aperture that can be inserted into a 5.00 inch diameter housing. The CS65 is available in a housed or an un-housed configuration for OEM applications (or simply where spatial limitations are a consideration).
Uni-stable shutter devices, like the CS65, require power to hold the blades in the open state.
A normally open configuration of this device is available by special order. Please contact us for more information.
Specifications
For additional technical information please see the CS65 Optical Shutter Datasheet.
Coil Resistance | Pulse Voltage to Open | Hold Voltage1(Nominal) |
---|---|---|
12 OHMS | +70 VDC | +7 VDC / +5 VDC2 |
Weight Unhoused | Weight Housed | Operating Temp. | Max. Opening Bounce | Max. Closing Bounce | Max. Freq. of Operation3 | Number of Shutter Blades |
---|---|---|---|---|---|---|
4.00 oz (0.11 kg) |
13.20 oz (0.37 kg) | 0 – 80 °C | 15% | 5% | 2.0 Hz / 5.0 Hz | 6 |
1 Voltage level required across actuator coil when being held in the open position.
2 Dual hold voltage system included in VCM-D1 Driver
3 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.
Electronic Synchronization System
Shutter Timing
The question regarding enhancement of shutter speed with the application of user supplied lubricants has been repeatedly asked. It is our experience that lubricating the shutter blades will actually slow the shutter down and eventually render the shutter inoperable. Under no circumstances should any type of lubricant be applied to the shutter blade area.
CS65 (w/ VCM-D1 and Teflon® coated blades) | Time (msec.) | |
---|---|---|
0-A: | Delay time on opening after current is applied | 9.0 |
A-C: | Transfer time on opening | 45.0 |
0-C: | Total opening time | 54.0 |
C-E: | Min. dwell time with min. input pulse | 22.0 |
B-F: | Min. equivalent exp. time | 70.0 |
E-G: | Transfer time on closing | 52.0 |
A-G: | Total window time | 119.0 |
MET: | Min. exposure time | 60.0 |
TEP: | Typical exposure pulse | >65.0 |
