XRS14 14mm X-ray Shutter

→ 상품 상세 정보 : XRS14 14mm X-ray Shutter

Overview

The Uniblitz XRS14 has been designed specifically for x-ray switching applications. The innovative platinum-iridium (PtIr) blade design allows beam extinction of 90% up to 30 keV x-ray energy (based upon the tenth value extinction of PtIr). The XRS14 is well suited for applications such as x-ray crystallography, medical x-ray imaging, etc.

Uni-stable shutter devices, like the XRS14, require power to hold the blades in the open state.

Specifications

For additional technical information please see the XRS14 X-ray Shutter Datasheet.

1 Voltage level required across actuator coil when being held in the open position.
2 (Continuous/Burst) Continuous frequency rating specified at shutter’s minimum exposure pulse. Burst frequency rating specified for four (4) seconds maximum with one (1) minute minimum between bursts.

Electronic Synchronization System

The electronic synchronization system provides a feedback signal (through the driver utilized) after the shutter transfers to the open state. The system incorporates an infrared emitting diode, an infrared sensitive detecting transistor, and an interrupting vane. The vane is attached to the shutter so as to block the light path between the emitter and detector in the closed position. When the shutter transfers to the 80% open position, the vane is removed from the infrared light path, allowing the emitter to switch the detector to the active state. For the XRS14, this system uses a similar activation flag attached to the mechanism, which triggers a reflective emitter/detector device. No connection to the designated synchronization pins when no electronic sync. is selected.

Shutter Timing

---

The question regarding enhancement of shutter speed with the application of user supplied lubricants has been repeatedly asked. It is our experience that lubricating the shutter blades will actually slow the shutter down and eventually render the shutter inoperable. Under no circumstances should any type of lubricant be applied to the shutter blade area.



XRS14 (w/ VCM-D1 driver and Teflon® coated blades)		Time (msec.)
0-A:	Delay time on opening after current is applied	5.0
A-C:	Transfer time on opening	20.0
0-C:	Total opening time	25.0
C-E:	Min. dwell time with min. input pulse	20.0
B-F:	Min. equivalent exp. time	5.0
E-G:	Transfer time on closing	10.0
A-G:	Total window time	35.0
MET:	Min. exposure time	25.0
TEP:	Typical exposure pulse	>25.0



Technical Drawings

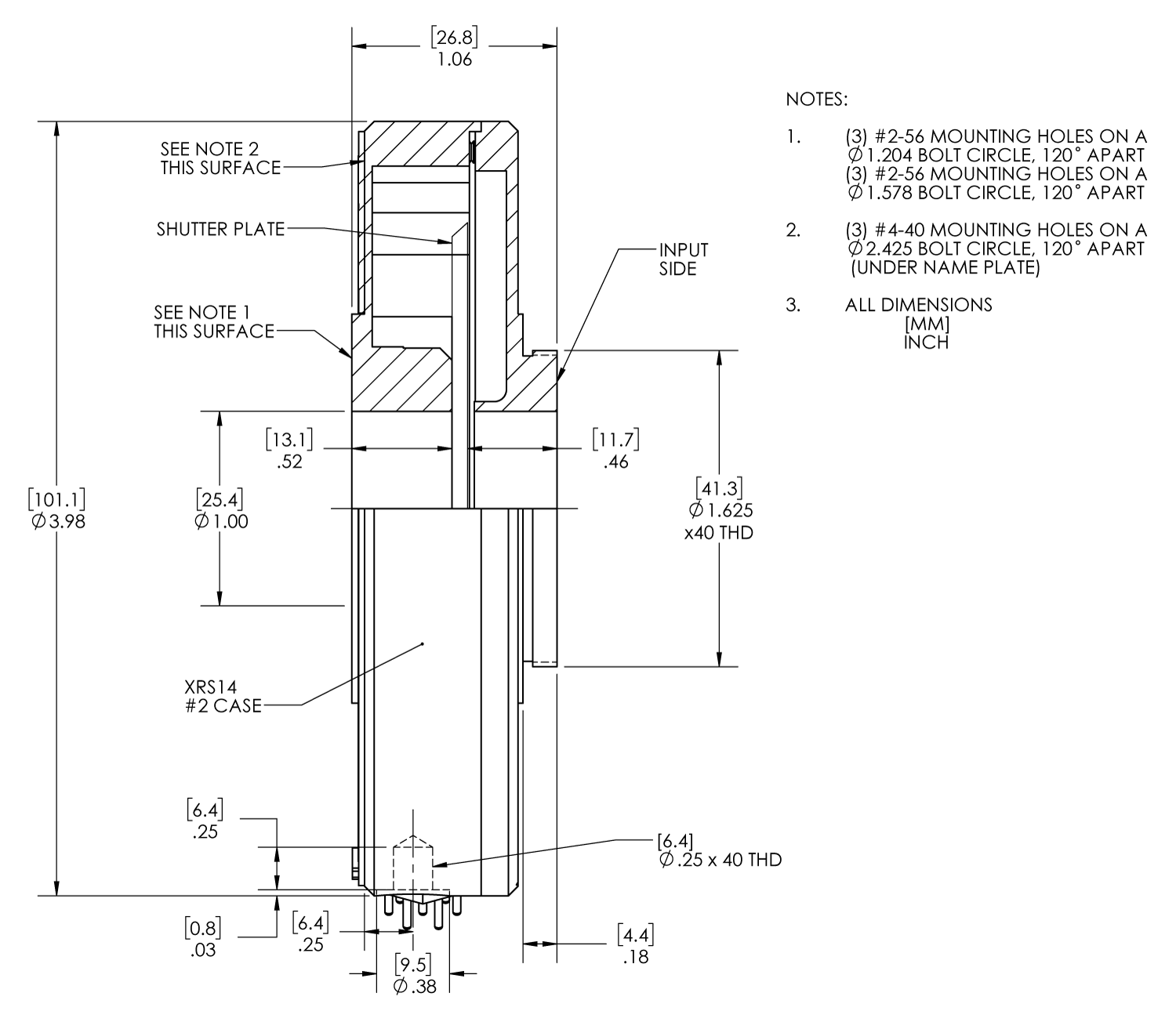

Housed

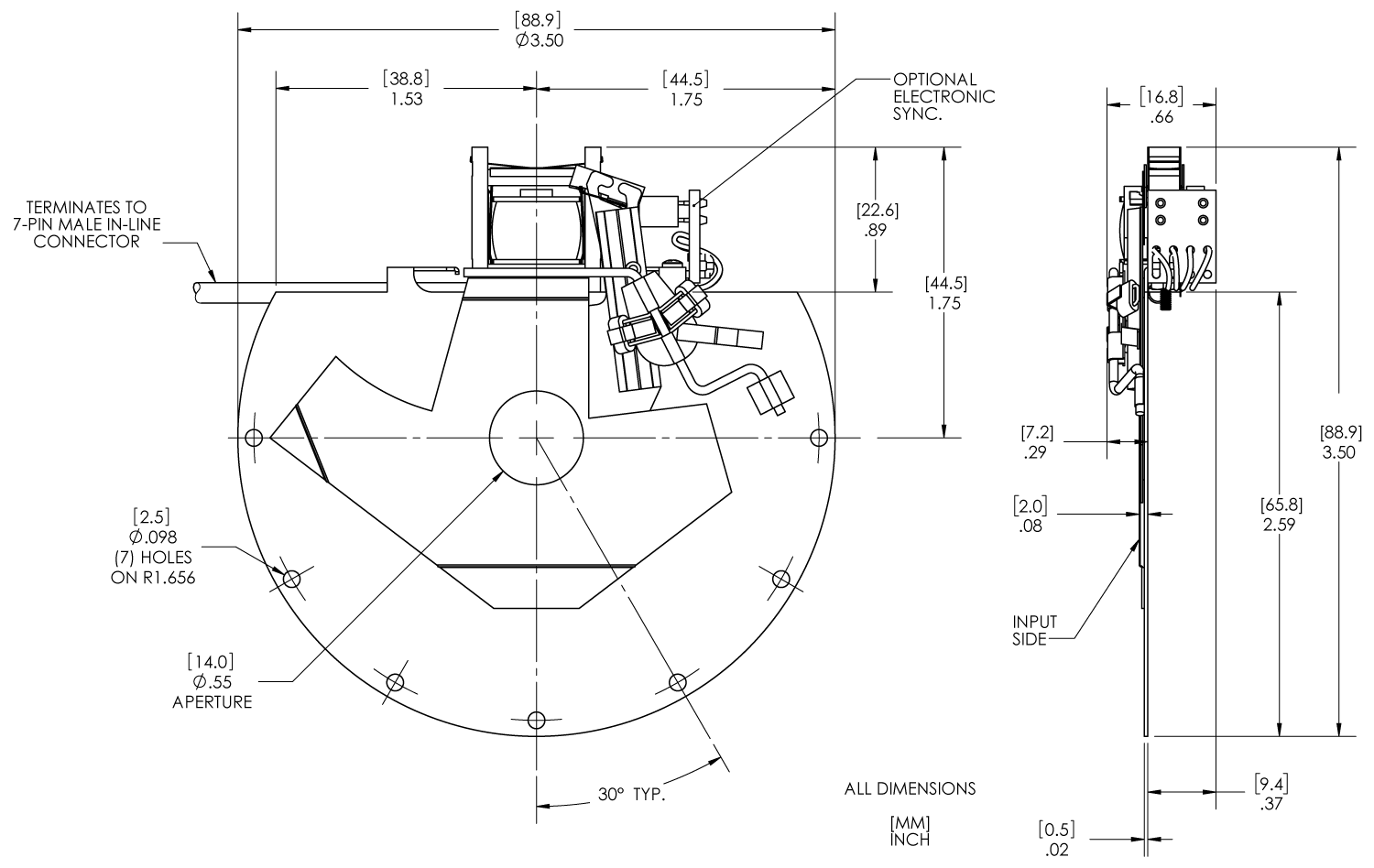

Un-housed

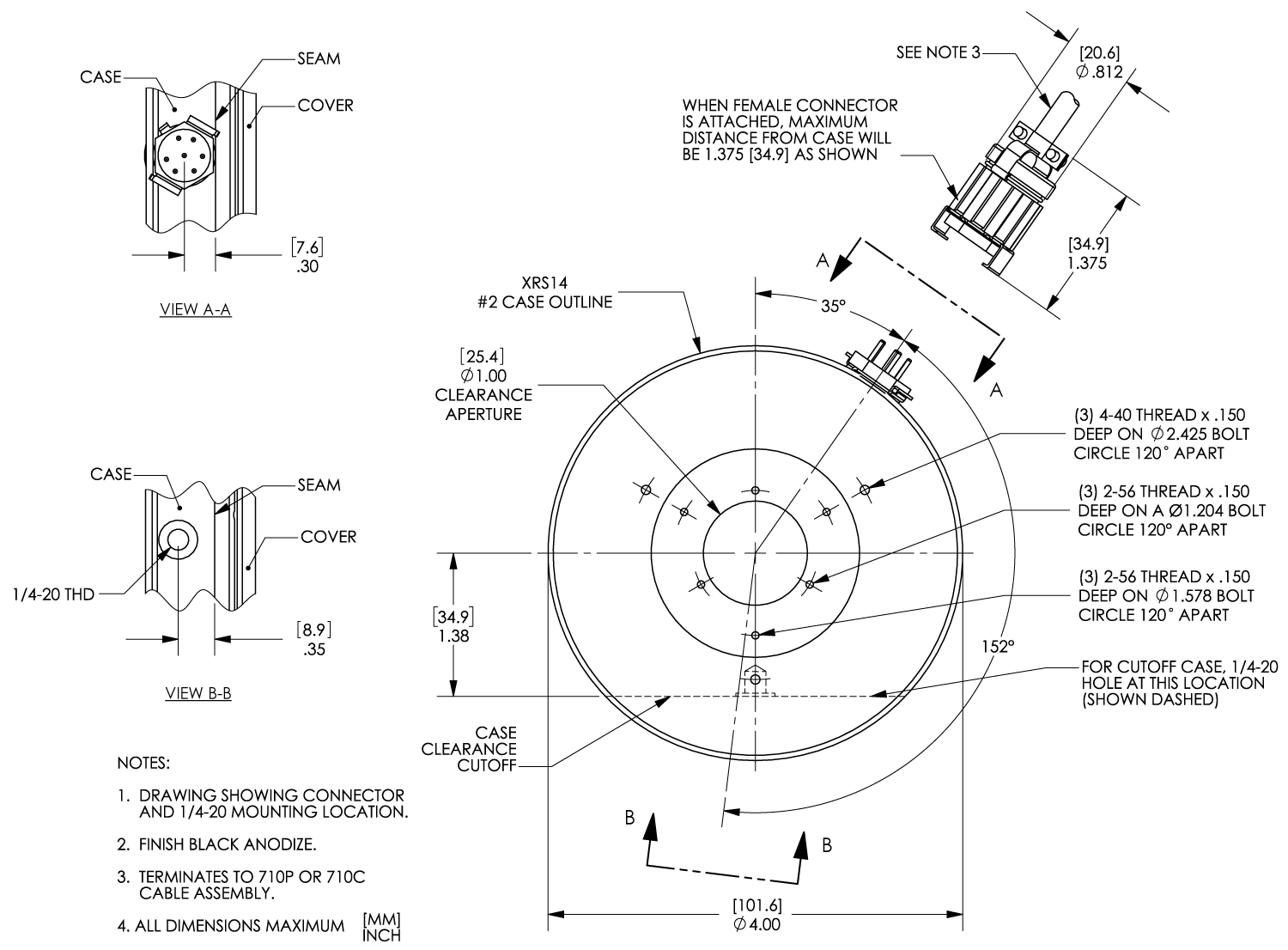

Connector Layout

Tenth Value Extinction of PtIr
