– 3 Hex Adjusters with Side Holes (See Image to the Right)
– Designed for use with Ø1″ Optics
– 100 TPI Matched Actuator/Body Pairs
– ±4° Mechanical Angular Range (Nominal)
– ~7.7 mrad/rev Resolution
– Less than 1 µrad Deviation after Temperature Cycling
(See the Test Data Tab for Details)
– Patented Monolithic Flexure Arm Design for Minimal Optic Distortion and Improved Optic Holding Stability (US Patent 10,101,559, See the Test Data Tab for Details)
– Designed for use with Ø1″ Optics
– 100 TPI Matched Actuator/Body Pairs
– ±4° Mechanical Angular Range (Nominal)
– ~7.7 mrad/rev Resolution
– Less than 1 µrad Deviation after Temperature Cycling
(See the Test Data Tab for Details)
– Patented Monolithic Flexure Arm Design for Minimal Optic Distortion and Improved Optic Holding Stability (US Patent 10,101,559, See the Test Data Tab for Details)

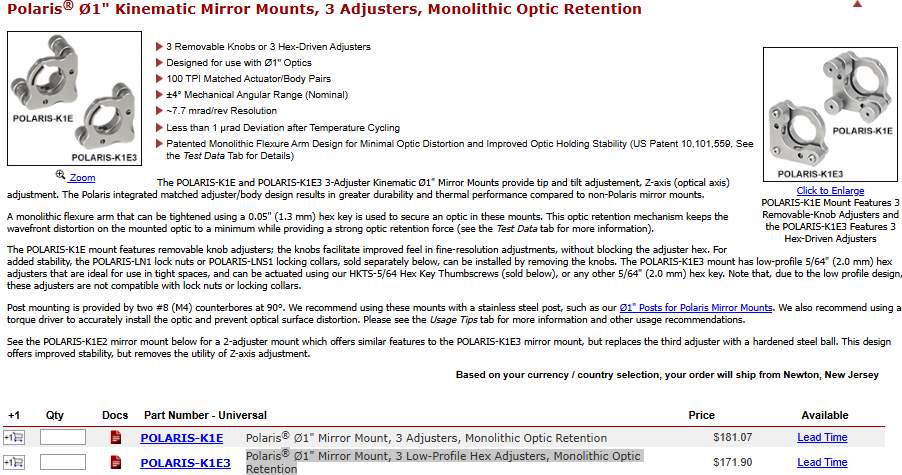

POLARIS-K1E – Polaris® Ø1″ Mirror Mount, 3 Adjusters, Monolithic Optic Retention
POLARIS-K1E3 – Polaris® Ø1″ Mirror Mount, 3 Low-Profile Hex Adjusters, Monolithic Optic Retention
