Part Number: ED12DSS
→ 상품 상세 정보 : ED12DSS Shutter Driver
Overview
The Uniblitz ED12DSS Driver is an open-frame, bi-stable, single board shutter driver well-suited for integration into OEM applications. All that is required is a user-supplied +12 to +24 VDC power supply and TTL input signal source.
The ED12DSS is the optimal open-frame driver for the Uniblitz DSS series shutters. Installation requires a connection to a user-supplied power supply and input and output harness connectors, and the selection of the open and close pulse duration using the on-board 4-position piano switch. The TTL pulse duration determines the shutter’s exposure time.
See the ED12DSS User Manual for additional information regarding this device. The ED12DSS is RoHS compliant.
What’s Included
- ED12DSS Shutter Driver
- Manual (included on flash drive)
- 203D Shutter Interconnect Cable
- ED-IOP Input Cable
A power supply is not included with this device.
Shutter Compatibility
| VS | LS | CS | DSS | TS | NS | XRS |
|---|---|---|---|---|---|---|
| DSS10B | TS2B | NS15B 1 | ||||
| DSS20B | TS6B | NS25B 1 | ||||
| DSS25B | NS35B 1 | |||||
| DSS35B | NS45B 1 |
1 Will require “ED” option (“For use with ED12DSS…”) for ED12DSS compatibility.
Don’t see your device listed above? Please contact us for information regarding the compatibility of other shutter devices.
Specifications
| System Characteristics | |
|---|---|
| Repeat Exposure | Minimum time between exposures is determined by shutter used and open close pulse duration. |
| Shutter Drive | Continuously variable frequency of exposures from DC to the shutter in operation maximum rate. |
| Trigger Input | Active-high |
| TTL Compatible | |
| General | Size (HWD) 0.50 x 2.25 x 2.25 inches (12.7 x 57.2 x 57.2 mm) |
| Weight 0.73 oz (0.021 Kg) | |
| Power input: +12VDC to +24VDC at 1.5A (user supplied) | |
| RoHS Compliant | |

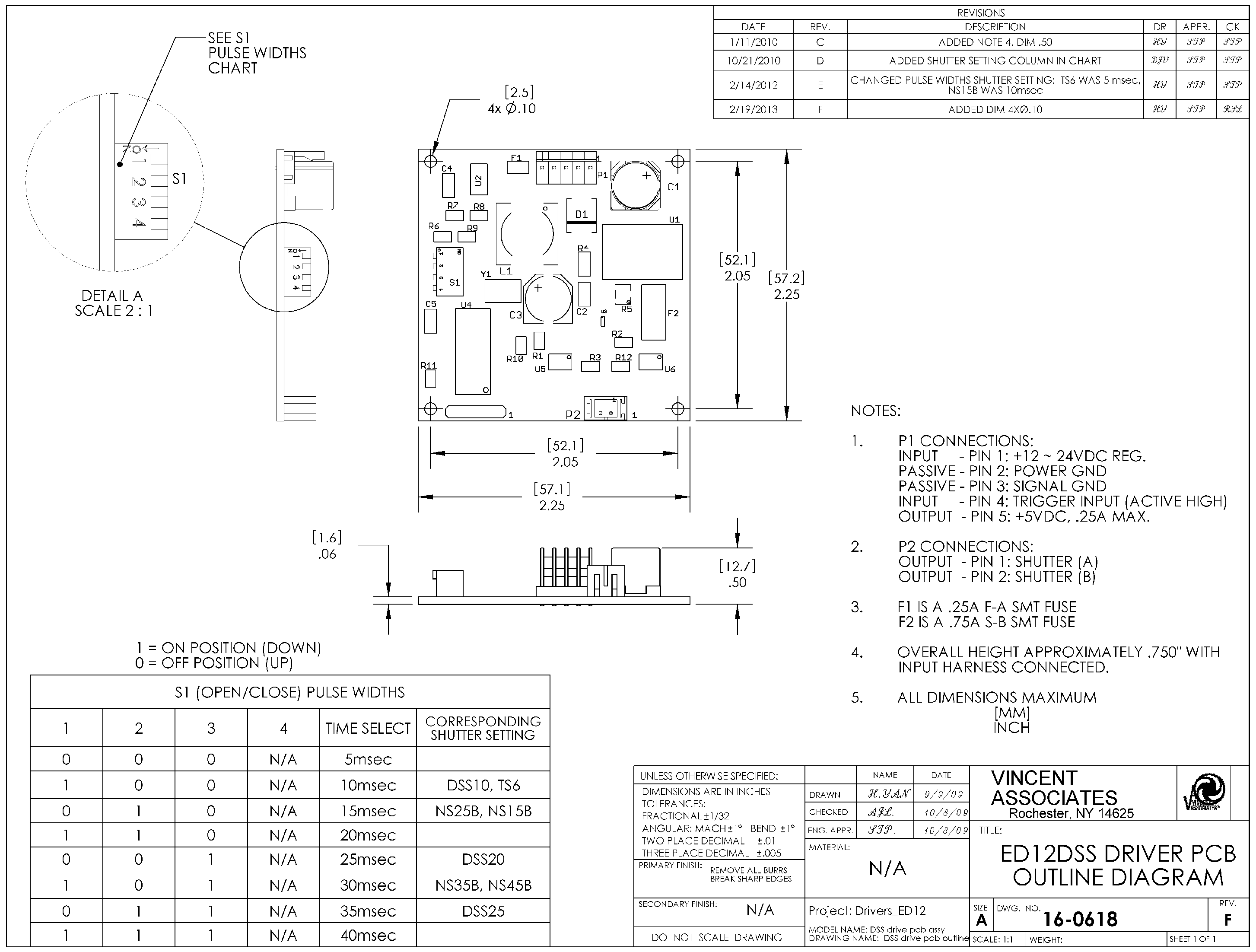

Board Mechanical Layout
| P1 Connections | ||
|---|---|---|
| Pin 1 | Input | +12VDC to +24VDC Reg |
| Pin 2 | Passive | Power GND |
| Pin 3 | Passive | Signal GND |
| Pin 4 | Input | Trigger Input (Active High) |
| Pin 5 | Output | +5VDC / .0.25A Max |
