Chromacity OPO 1.4 µm – 1.8 µm

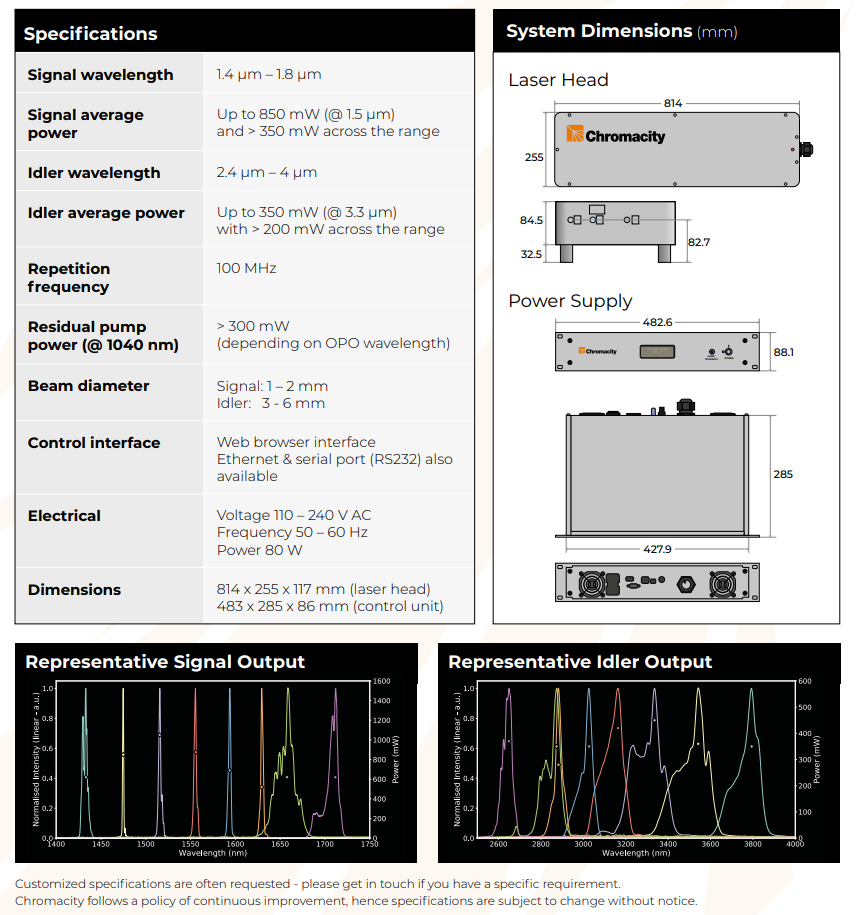

Specifications

Signal wavelength: 1.4 µm – 1.8 µm

Signal average power: Up to 850 mW (@ 1.5 µm)

                               and > 350 mW across the range

Idler wavelength: 2.4 µm – 4 µm

Idler average power: Up to 350 mW (@ 3.3 µm)

                            with > 200 mW across the range

Repetition frequency: 100 MHz

Residual pump power (@ 1040 nm): > 300 mW

                               (depending on OPO wavelength)

Beam diameter: Signal: 1 – 2 mm

                      Idler: 3 – 6 mm

Control interface:Web browser interface

                       Ethernet & serial port (RS232) also

                       available

Electrical: Voltage 110 – 240 V AC

             Frequency 50 – 60 Hz

             Power 80 W

Dimensions:814 x 255 x 117 mm (laser head)

                483 x 285 x 86 mm (control unit)
