Chromacity 520 Low Power Up to 500 mW

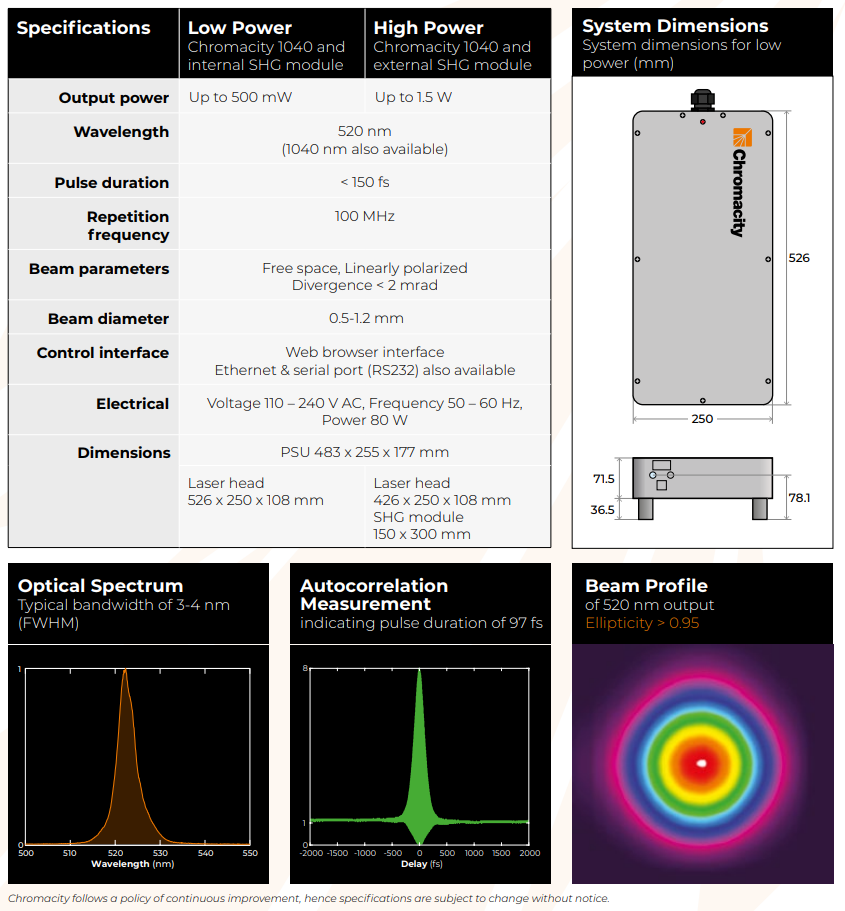

Specifications

Output power: Up to 500 mW

Wavelength: 520 nm (1040 nm also available)

Pulse duration: < 150 fs

Repetition frequency: 100 MHz

Beam parameters: Free space, Linearly polarized

                         Divergence < 2 mrad

Beam diameter:  0.5-1.2 mm

Control interface: Web browser interface

                        Ethernet & serial port (RS232)

                        also available

Electrical: PSU 483 x 255 x 177 mm

Dimensions:Laser head

                526 x 250 x 108 mm
