Chromacity 1040 Medium power 2.5 W

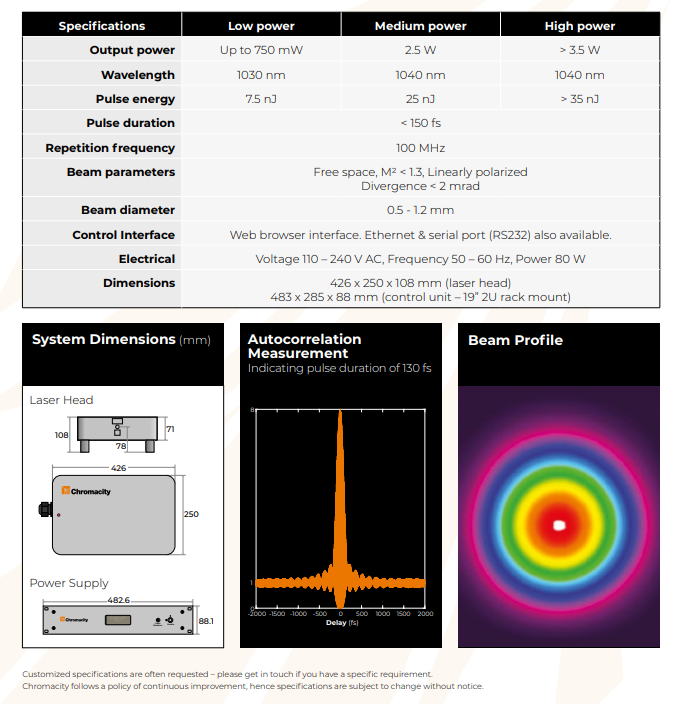

Specifications

Output power:2.5 W

Wavelength:1040 nm

Pulse energy:25 nJ

Pulse duration:< 150 fs.

Repetition frequency:100 MHz

Beam parameters:Free space, M2 < 1.3,

                        Linearly polarized Divergence < 2 mrad3

Beam diameter:0.5 – 1.2 mm

Control Interface:Web browser interface.

                       Ethernet & serial port (RS232) also available.

Electrical:Voltage 110 – 240 V AC,

             Frequency 50 – 60 Hz Power 80 W

Dimensions:426 x 250 x 108 mm (laser head)

                483 x 285 x 88 mm (control unit – 19” 2U rack mount)
